SuperQuilt MultiFoil Insulation 1.5mx10m=15m2 40mm Thick Thermal & Vapour Barrier

SuperQuilt MultiFoil Insulation 1.5mx10m=15m2 40mm Thick Thermal & Vapour Barrier

SuperQuilt is the UK’s leading Agrément Certified reflective multifoil insulation. This flexible, easy to install, 2 in 1 reflective aluminium multilayer insulation and vapour control layer offers tremendous thermal and vapour resistance benefits.

Specifically designed to replace the use of traditional insulation by effectively dealing with all three forms of energy transfer, offering a high level of thermal performance. This versatile thermally efficient layered insulation is the ideal solution to all your insulation needs and will save valuable time and cost of your
installation whilst providing energy saving and maximising living space.

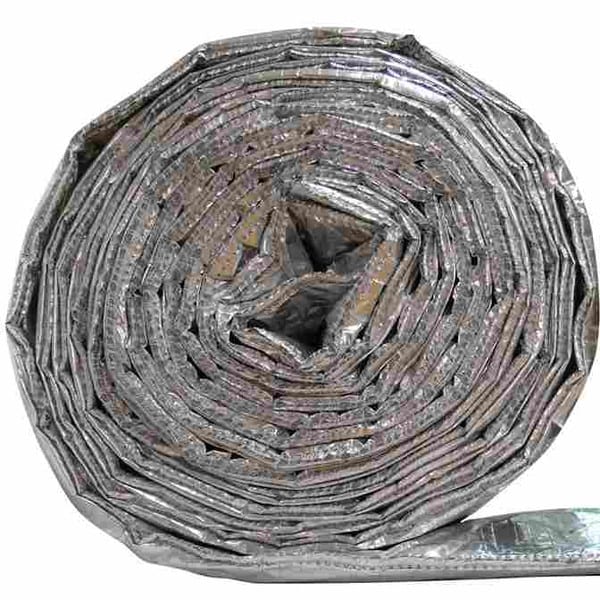

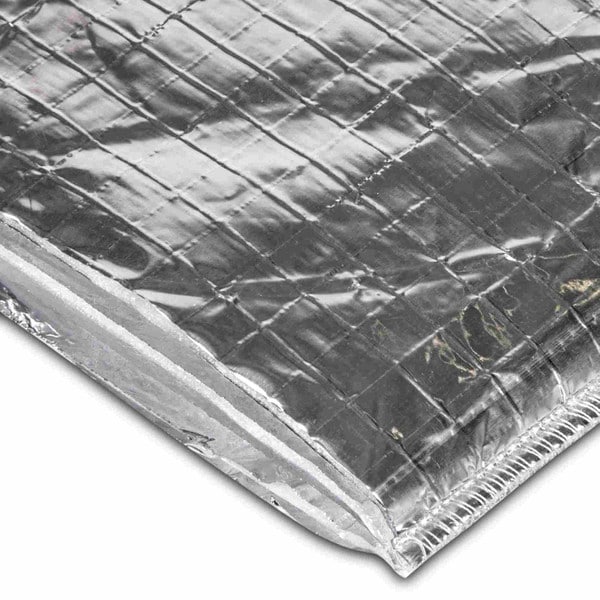

Made up of 19 high quality flexible layers and only 40mm thick, SuperQuilt offers a high thermal performance, this is achieved by its unique layer configuration and thin profile thickness.

The reflective outer layers of the product increase the overall thermal performance of the product once installed (R-Value up to 3.00 m²K/W), equivalent up to 130mm Mineral Wool .

SuperQuilt is fully Agrément certified to UK industry standards, building control compliant, NHBC accepted and can be used in new build or existing roofs, walls, floors and many more applications. Once taped and sealed SuperQuilt works as a vapour control layer, stopping the passage of moisture, reducing the risk of condensation.

This product is suitable for roofs, walls and floors and offers the following major benefits

• R-Value up to 3.0 m²K/W, equivalent to 130mm of Mineral Wool Insulation.
• Up to 83% reduction in heat loss, saving you money on your energy bills.
• Reduces Risk of Condensation.
• Manufactured using 83% recycled materials.
• Zero fibres removes the need for PPE.
• Non degradable maintaining thermal performance and product integrity.
• Does not absorb moisture.
• Flexible, lightweight and easy to install.
• Minimal waste compared to traditional insulation products.
• Manufactured using 83% recycled materials.
• Fully Agrément Certified, Building Control Compliant and NHBC accepted.
• Made in Britain.

Due to the special composition of multi-layers of insulation, SuperQuilt effectively deals with all forms of energy transfer (i.e. conduction, convection and radiation). SuperQuilt works most effectively by reflecting infra-red radiation. This means that not only is SuperQuilt effective in winter by reflecting heat back into the building and cold out, but also in summer SuperQuilt is a very effective barrier to solar overheating which reduces the need for artificial cooling systems as it prevents the accumulation of heat within the building.

Installation of SuperQuilt for Timber Frame and Masonry Wall Applications and additional insulation products should be in accordance with the Certificate, YBS fixing instructions and current good building practice.

When the SuperQuilt is cut to fit around openings, care should be taken to minimise gaps. SuperQuilt can be cut easily using sharp scissors or a knife. The surfaces of the masonry wall should be sound and free from loose material; large projections should be removed and holes filled and levelled.

A survey of the wall may be required to establish the extent of any packing that may be required to ensure a uniform plane for the materials to be fixed. Bearing surfaces for timber battens should comply with BS 8212 : 1995. The depth of timber battens will determine the air space achieved on either side of the SuperQuilt, YBS recommend 25mm battens.

All joints and perforations in the products must be securely sealed with Foil Tape Services may be accommodated within the void created by the dry lining system.

If the wall you are refurbishing has a damp or mould issue, this needs to/must be rectified before any insulation is installed.
